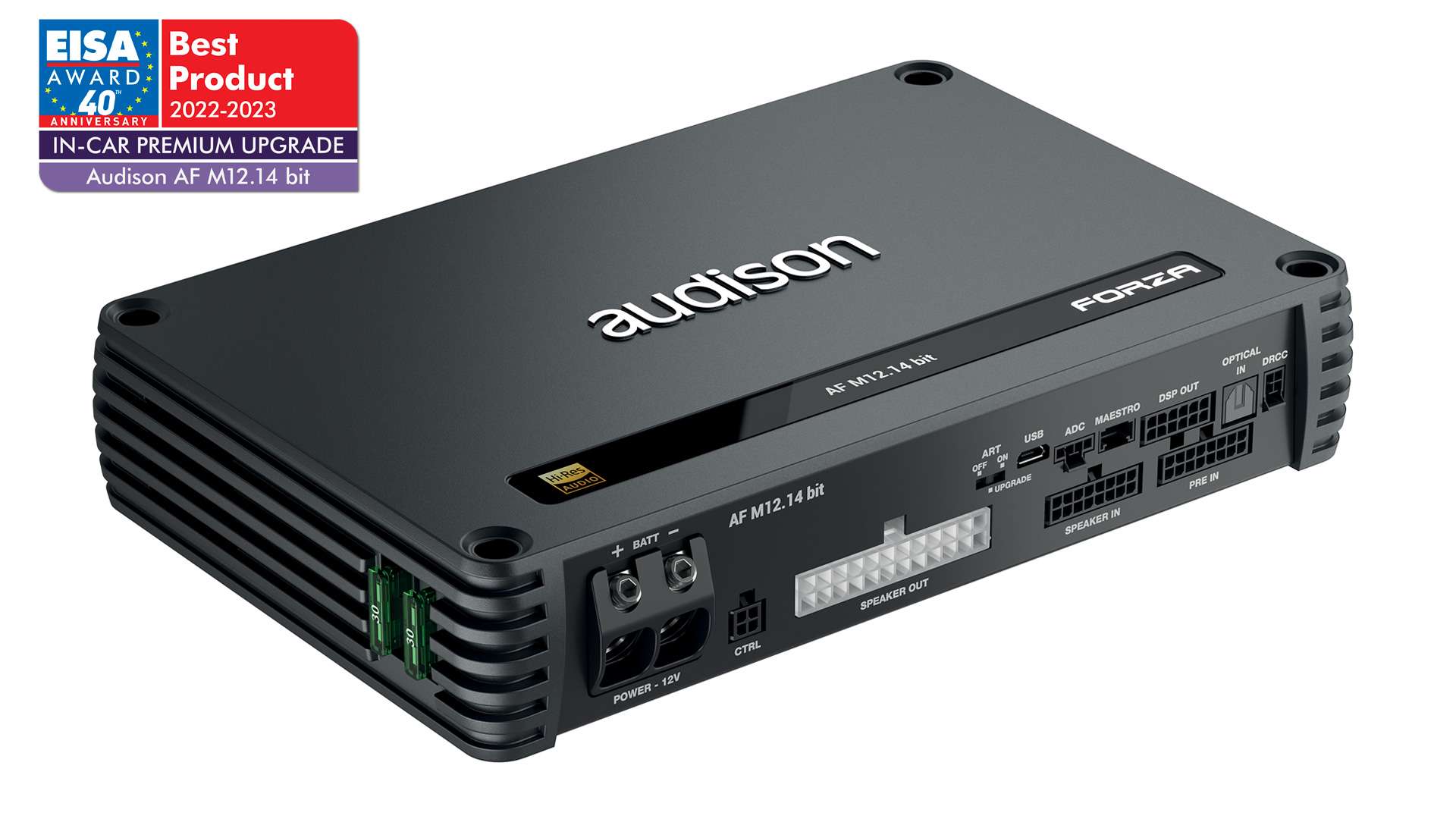

Audison FORZA AF M12.14 BIT Amplifier 12 Channel Amp 14 Channel DSP 1080W RMS

£1,399.00 Inc VAT

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

  • More Power
  • More Information
  • More Control
  • More Inputs
  • More Speed
  • More Tools
  • More Capabilities
  • More Guidance
  • More Flexibility
  • all in one state-of-the-art platform!
Not Sure? Ask Us!
SKU: AMP-AUDISON-M12.14 Categories: , Tags: , , , , , , , , , , , , , ,

Product Information

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

  • More Power
  • More Information
  • More Control
  • More Inputs
  • More Speed
  • More Tools
  • More Capabilities
  • More Guidance
  • More Flexibility
  • all in one state-of-the-art platform!

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL

Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in a completely new way – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.

ADVANCED OEM INTEGRATION CAPABILITIES

Forza’s eight analogue inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems.  If more analogue inputs are required, the optional F4IN expansion card adds four additional analogue input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.

AF M12.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:

  • One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
  • One featuring 8 pairs of labelled cables for the connection to high-level output OEM sources
  • One includes twelve pairs of labelled cables to connect the speakers to the amplifier
  • One Control interconnection to control memory selection and remote power-on.

1 review for Audison FORZA AF M12.14 BIT Amplifier 12 Channel Amp 14 Channel DSP 1080W RMS

  1. Chris (verified owner)

    Stunning bit of kit, expertly installed by Chris at Dav-tec. I was genuinely amazed at the difference in quality, it drives exceptional clarity at is super powerful, really brings the rest of the kit to life.
