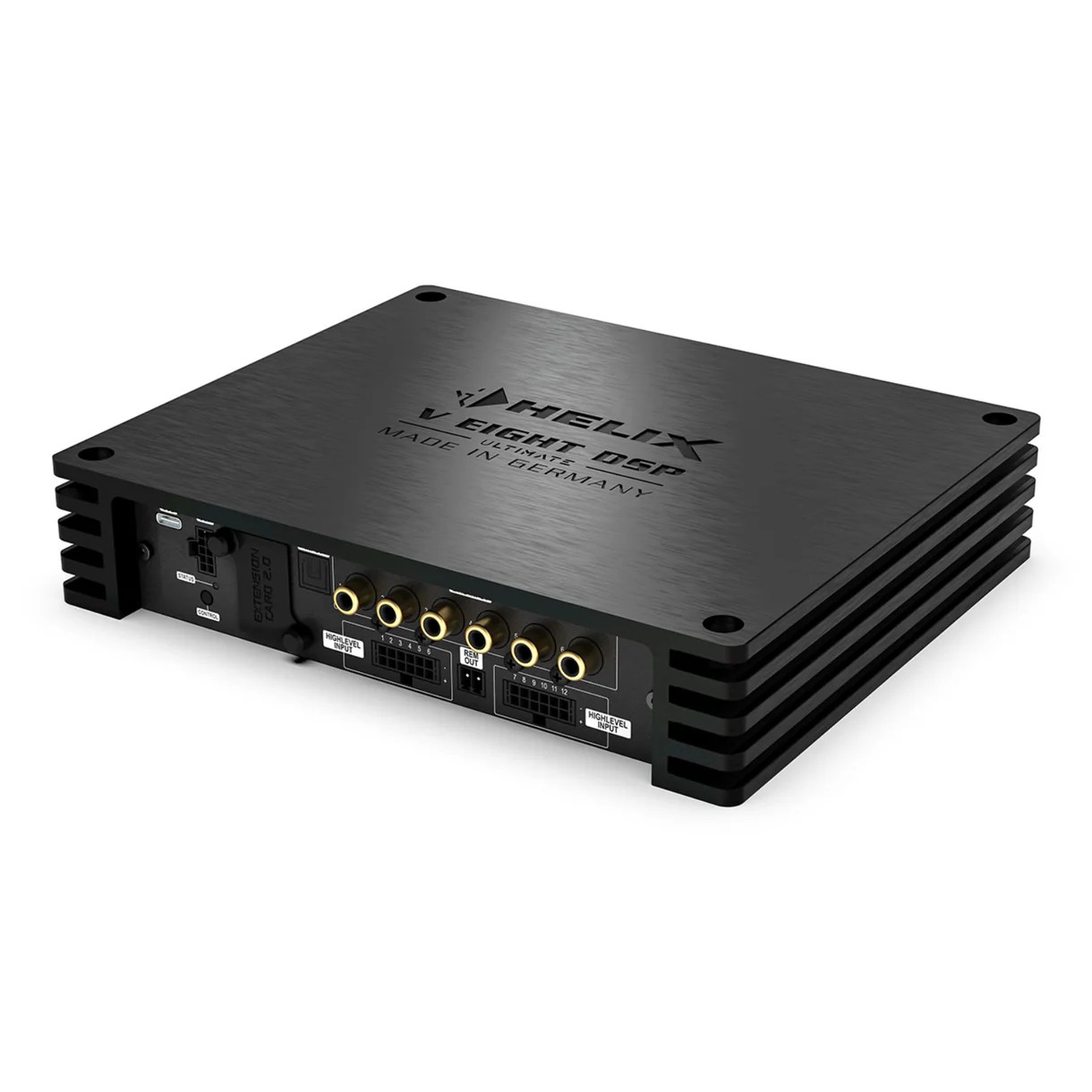

HELIX V EIGHT DSP ULTIMATE
8-Channel Amplifier with Integrated 14-Channel Digital Signal Processor

The HELIX V EIGHT DSP ULTIMATE is an 8-channel amplifier featuring an integrated 14-channel Digital Signal Processor (DSP). It is designed for complex, multi-channel in-car audio systems, offering extensive connectivity, high power output, and detailed tuning capabilities through the DSP PC-Tool 6 software.

Core Features & Technology
Amplifier & Power

Amplifier Technology: Utilises a Class HD design for high efficiency and sound quality.

Power Output: Delivers 8 x 110 Watts RMS into 4 Ohms. The output can reach up to 270 Watts RMS per channel into 2 Ohms.

Stable Power Supply: Features Stabilized Output Power (SOP Max) technology for consistent performance regardless of input voltage fluctuations. The power supply is Start-Stop capable and supports an extended input voltage range up to 18V, making it suitable for modern vehicles, including electric models.

Signal Processing

DSP: Equipped with a 64-Bit fixed-point Audio DSP, providing 14 independent channels of signal processing.

CoProcessor: An Advanced 32-Bit CoProcessor (ACO) manages system tasks, data communication, and DSP features, allowing for rapid switching between up to ten sound setups.

Virtual Channel Processing (VCP): Allows for flexible configuration of complex audio systems, including cross-channel group equalisers and multi-way speaker setups for sound effects.

Connectivity

Inputs:

12-channel high-level input with ADEP.3 circuit for integration with factory OEM systems (up to 32V RMS).

6 x RCA/Cinch inputs.

1 x Optical SPDIF digital input.

1 x USB-C port.

Outputs:

8 x Speaker outputs.

6 x Processed RCA/Cinch line outputs (max. 3 Volts) for connecting additional amplifiers.

Expansion:

Extension Card 2.0 (EC 2.0) Slot: Allows for the addition of system add-ons such as a Bluetooth® HD audio streaming module or extra analogue inputs.

Smart Control Port (SCP): For connecting remote controls and other accessories.

USB PerfectStream: The USB-C interface supports lossless high-resolution audio streaming (up to 192 kHz / 32 Bit), DSP configuration, and real-time signal analysis with AISA.

Tuning & Analysis

DSP PC-Tool 6 Software: Provides a professional interface for precise amplifier configuration and sound tuning.

Advanced Input Signal Analyzer (AISA) & InputEQ: Facilitates the analysis and correction of input signals from factory head units.

TuneEQ: An automated function for adjusting the input, virtual, and output equalisers.

Dynamic Controls: Includes Dynamic Loudness Control (DLC) for volume-dependent equalisation and Remote Tone Control (RTC).

Sound Effects (SFX): Features Augmented Bass Processing and RealCenter processing.

Technical Specifications

• Amplifier Channels: 8
• DSP Channels: 14
• Power Output (RMS @ 4Ω): 8 x 110 W
• Power Output (RMS @ 2Ω): 8 x 110 W (with 4 channels bridged, can supply 4 x 220 W)
• Max Power Per Channel: Up to 270 W RMS into 2 Ω
• Amplifier Technology: Class HD
• Inputs: 12 x High-level, 6 x RCA/Cinch, 1 x Optical SPDIF, 1 x USB-C
• Input Sensitivity (High-level): Up to 32 V RMS
• Outputs: 8 x Speaker Output, 6 x RCA/Cinch (max. 3V), 1 x Remote Out
• DSP Resolution: 64 Bit
• CoProcessor: 32 Bit ACO
• High-Resolution Audio: Up to 192 kHz / 32 Bit via USB
• Input Voltage Range: Up to 18 V (Start-Stop capable)
• Special Features: ADEP.3 circuit, 1:1 Input-to-Output Routing (IOR), VCP, AISA, InputEQ, TuneEQ, DLC, RTC, SFX, SCP, SOP Max
• Control: DSP PC-Tool 6 Software
• Expansion Slot: Extension Card 2.0 (EC 2.0)
• Switching: Auto Remote switch
