Hertz Mille Pro MPK 163.3 6.5″ 16.5cm Car 3 Way Component Speaker 150w RMS Pair

£499.00

Not Sure? Ask Us!

Product Information

MPK 163.3 PRO
165 (6.5) MM (IN.) | SYSTEM | 300 W | 4 OHM
EXTREME DYNAMICS, UNLIMITED POWER HANDLING, REALISTIC SOUND STAGE

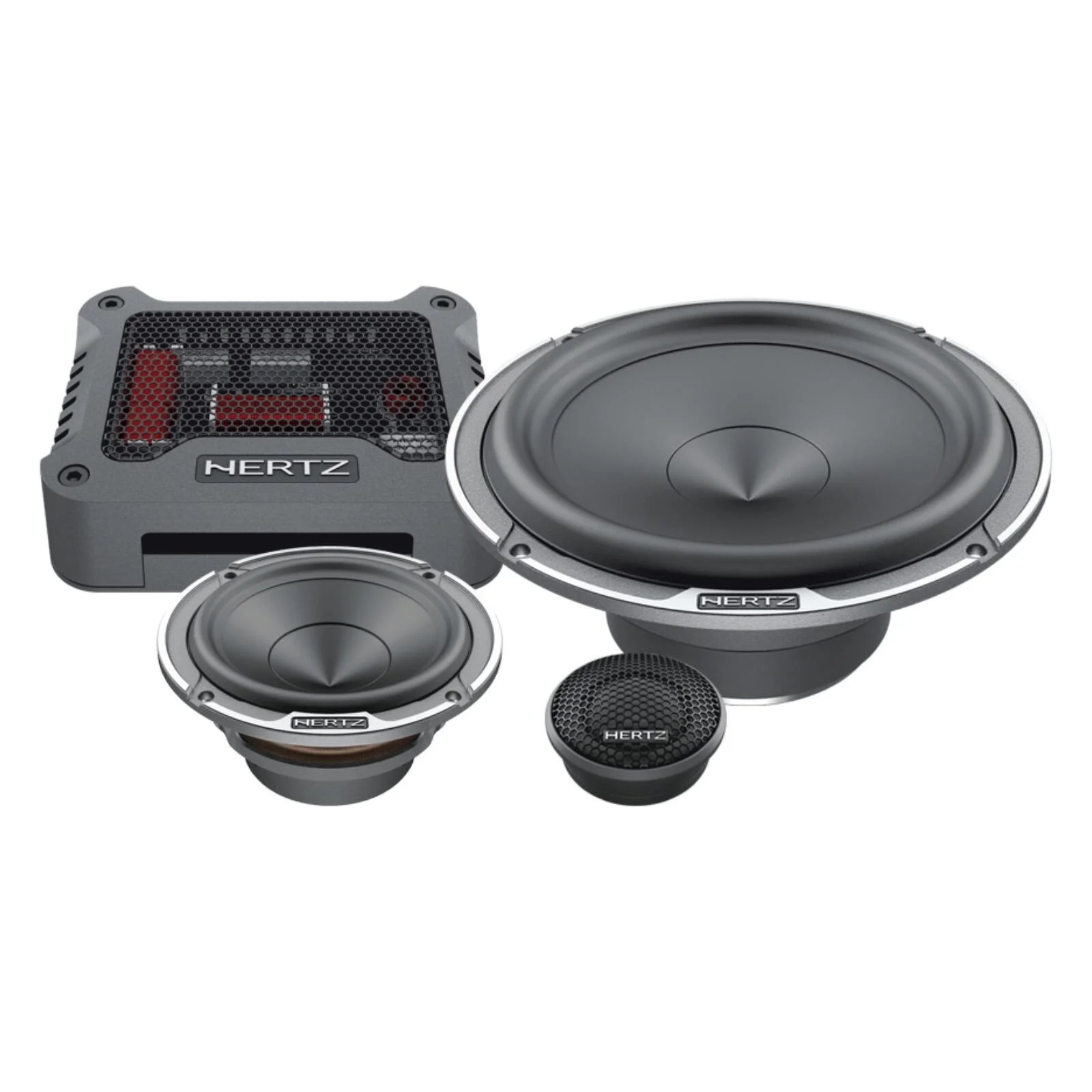

The three-way MPK 163.3 car audio speakers system is dedicated to those who want the best: the MP 70.3 midrange featuring Neodymium double magnet inside the coil produces an enthralling mid-range, perfect to combine with the powerful mid-low of the MP 165.3 woofer as well as with the detailed high range of the MP25.3 tweeter.

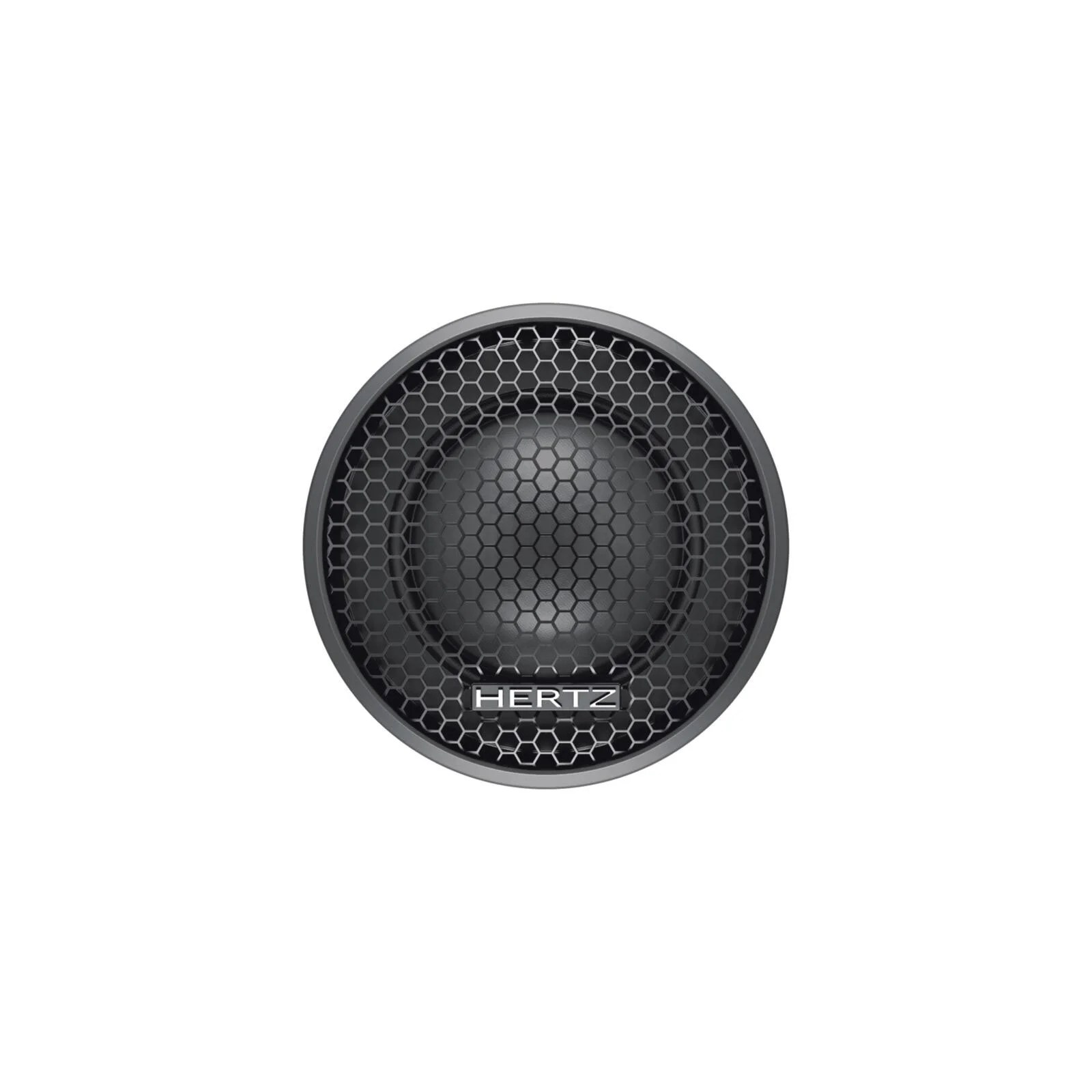

MP 25.3:
Tetolon fiber soft dome, for a natural yet detailed reproduction of musical nuances.
Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
High-density flux Neodymium magnet, optimized for utmost control during high energy dynamic transients in the mid-high frequency range. 25mm ferrofluid-cooled mobile voice coil.
The rear chamber is filled with selected damping material and sized for lower Fs, to ensure a well-damped high pass frequency roll-off, allowing a low cut-off frequency crossover point.
Faceplate featuring FEM (Finite Element Modeling) optimized geometry, for high linearity in off-axis installations.
A wide array of installation accessories, for easy OEM integration.

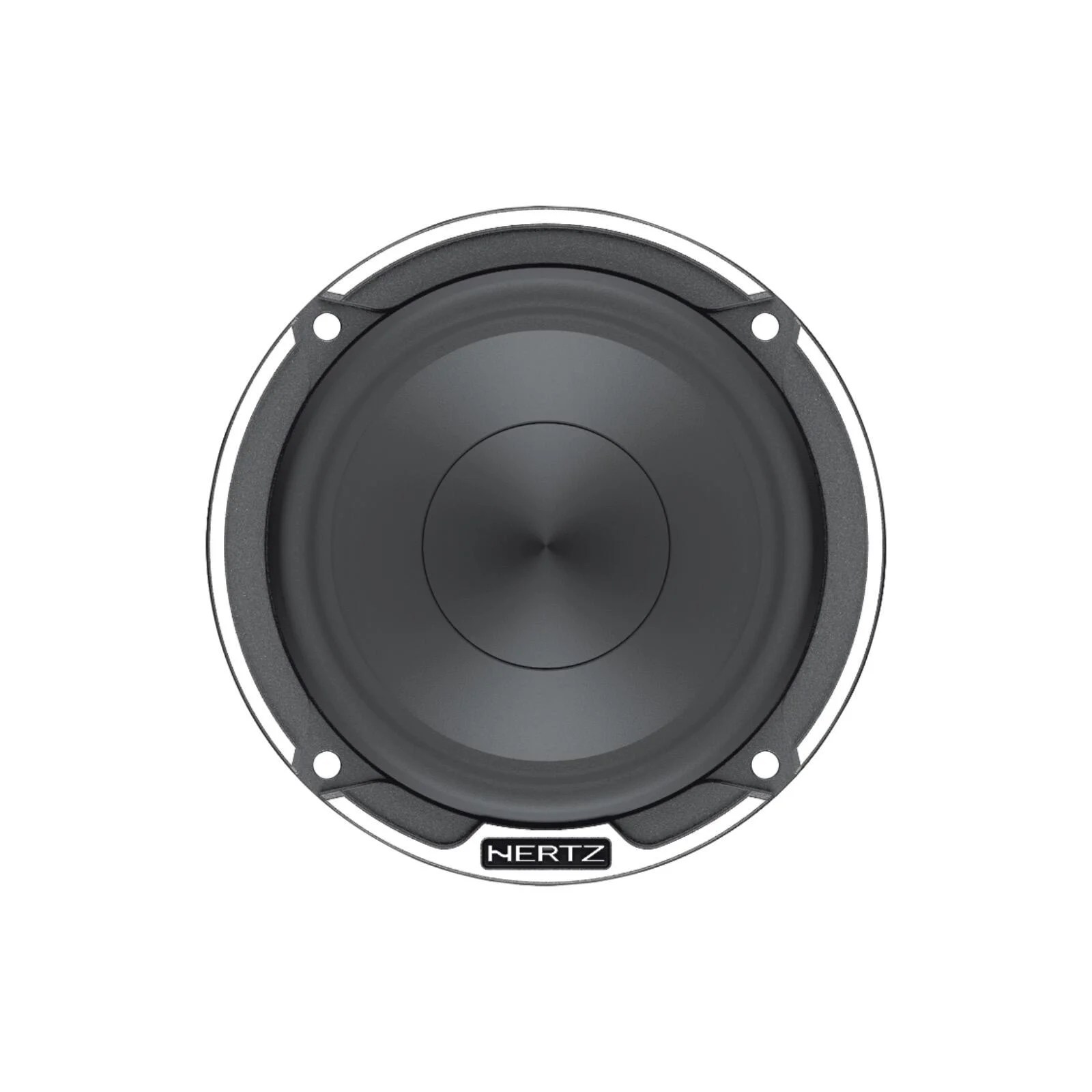

MP 70.3:
Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
20 mm CCAW double-layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
Exponential V-cone® profile pressed-pulp cone with cotton fibres, combining stiffness and lightweight for a wide frequency response.
Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
“Boundary Free” rubber surround, for better efficiency and wider mid-bass frequency.
Anti-vibration rubber magnet cover is removable to damp spurious vibrations to fit limited mounting depth installations.
Acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.

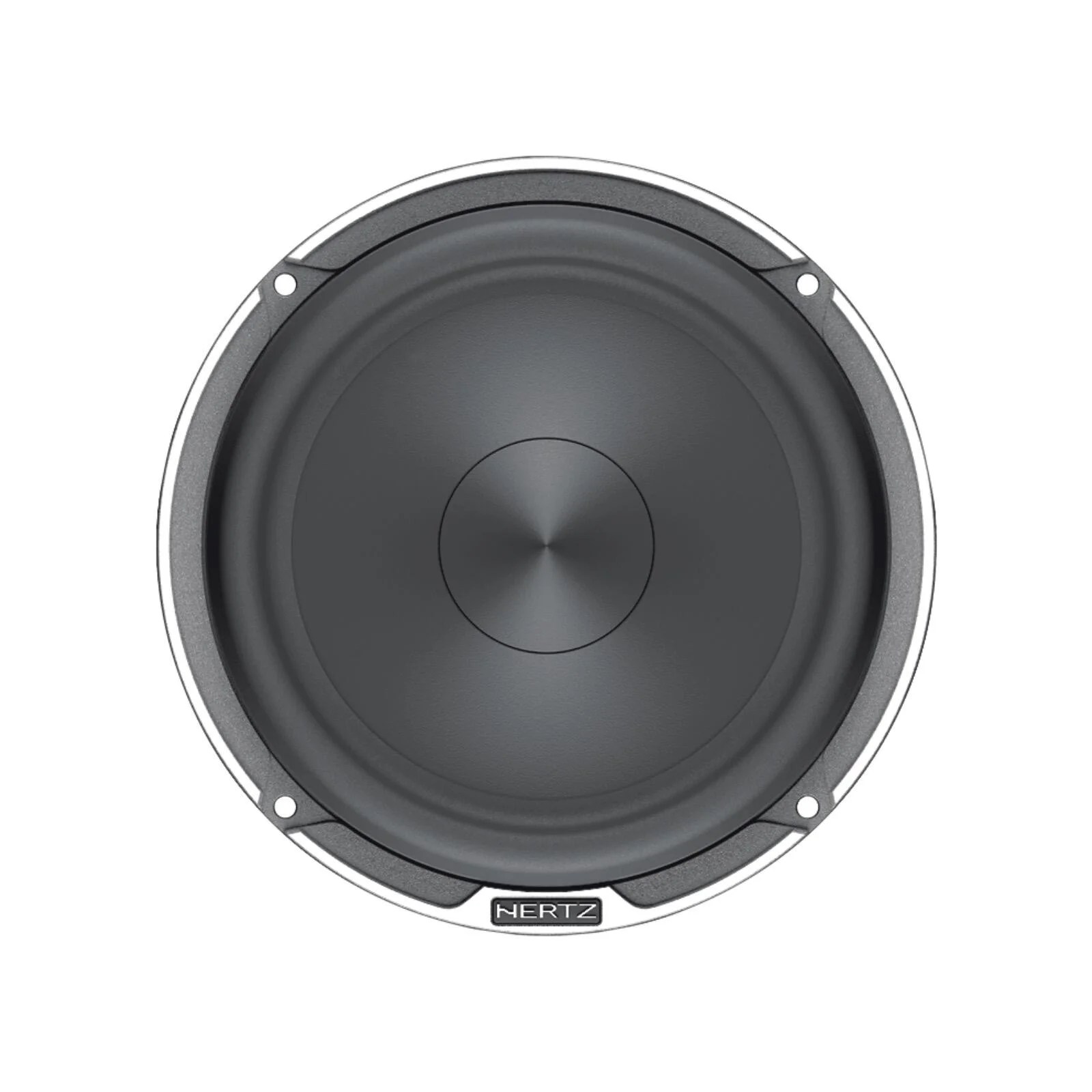

MP 165.3:
Pure copper voice coil wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
Exponential V-cone® profile pressed-pulp cone with cotton fibres, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-frequency range.
“Boundary Free” rubber surround, for improved efficiency and wider mid-bass frequency.
High-density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.

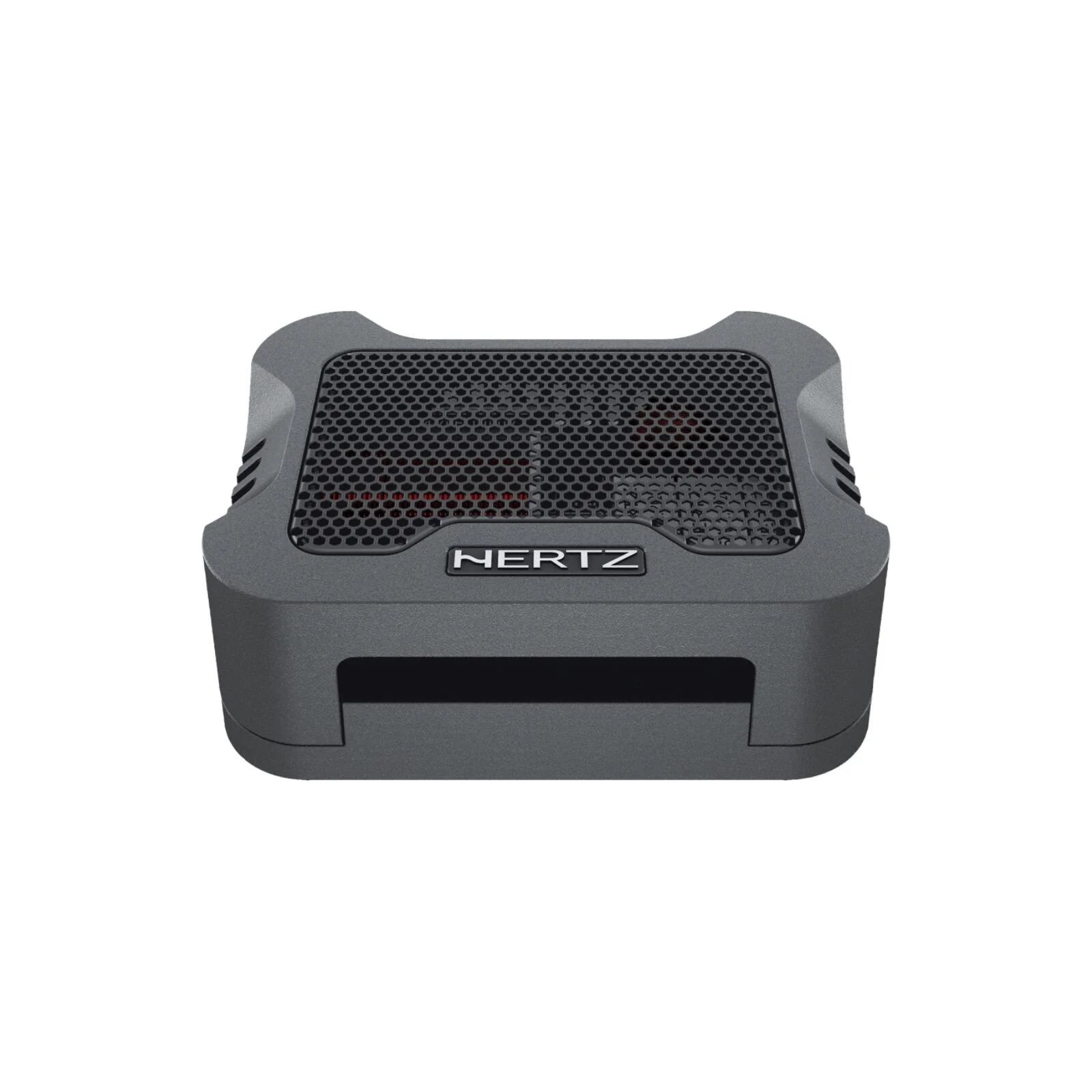

MPCX 3.3:
Two-position (0 / +2 dB) switch for tweeter & midrange level adjustments, to fine-tune the transducer’s emission according to their installation position.
100V extremely high-quality bi-metallized polyester film capacitors in the tweeter section, for maximum sound transparency and neat hi-frequencies.
1mm pure copper wire with low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded.
The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range. The dedicated MPCX 3.3 crossover provides optimized crossover points to exploit the midrange remarkable extension using ultra-selected components.



SPECIFICATIONS

Component System
Size mm (in.) 165 (6.5)
Power Handling – Continuous W 150
Power Handling – Peak W 300
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 92
Frequency Response Hz 40 ÷ 22,5k
Crossover Cut off 450Hz – 5.5k Hz
Crossover Type 3-Way Passive Crossover
Adjustment
Tweeter level 0 / +2 dB
Midrange level 0 / +2 dB
Weight of one component – Woofer 1.07 (2.36)
Weight of one component – Tweeter kg (lb) 0.07 (0.15)
Weight of one component – Crossover kg (lb) 0.43 (0.95)

WHAT’S INCLUDED

Two MP 165.3 Woofers
Two MP 70.3 Midrange
Two MP 25.3 Dome tweeters (with attached 10″ length of speaker wire)
Two MPCX 3.3 Crossover networks
Tweeter flush mount trim rings
Tweeter flush mount clamps
Angled surface mount housings
OEM tweeter mounting brackets
Tweeter grilles (installed)
Woofer grilles
Midrange grilles
Grille putty
Screw
Speed clips
Owner’s manual
