Match UP 8DSP Universal Amp Upgrade 8 Channel Amplifier & 64 Bit 9 Channel DSP

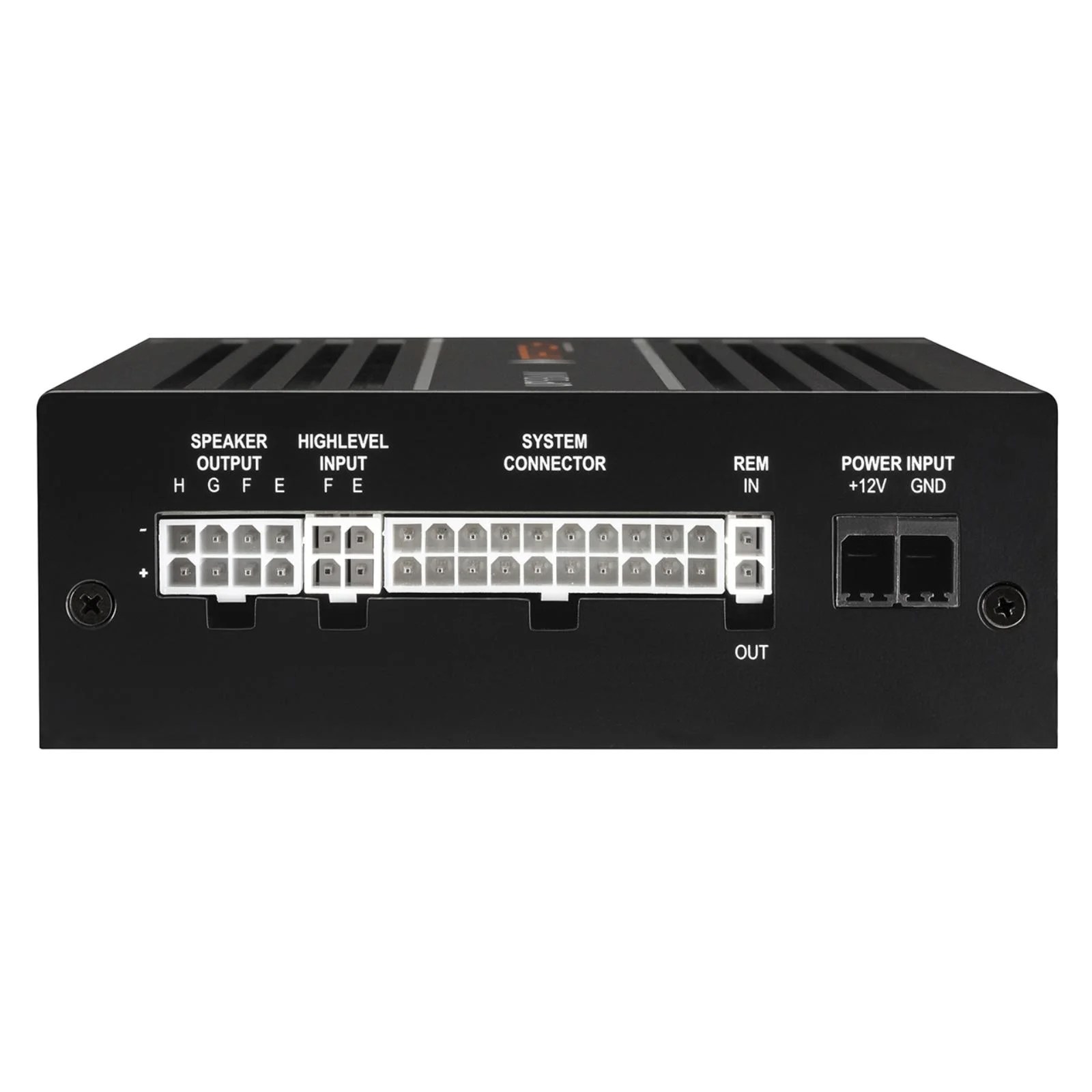

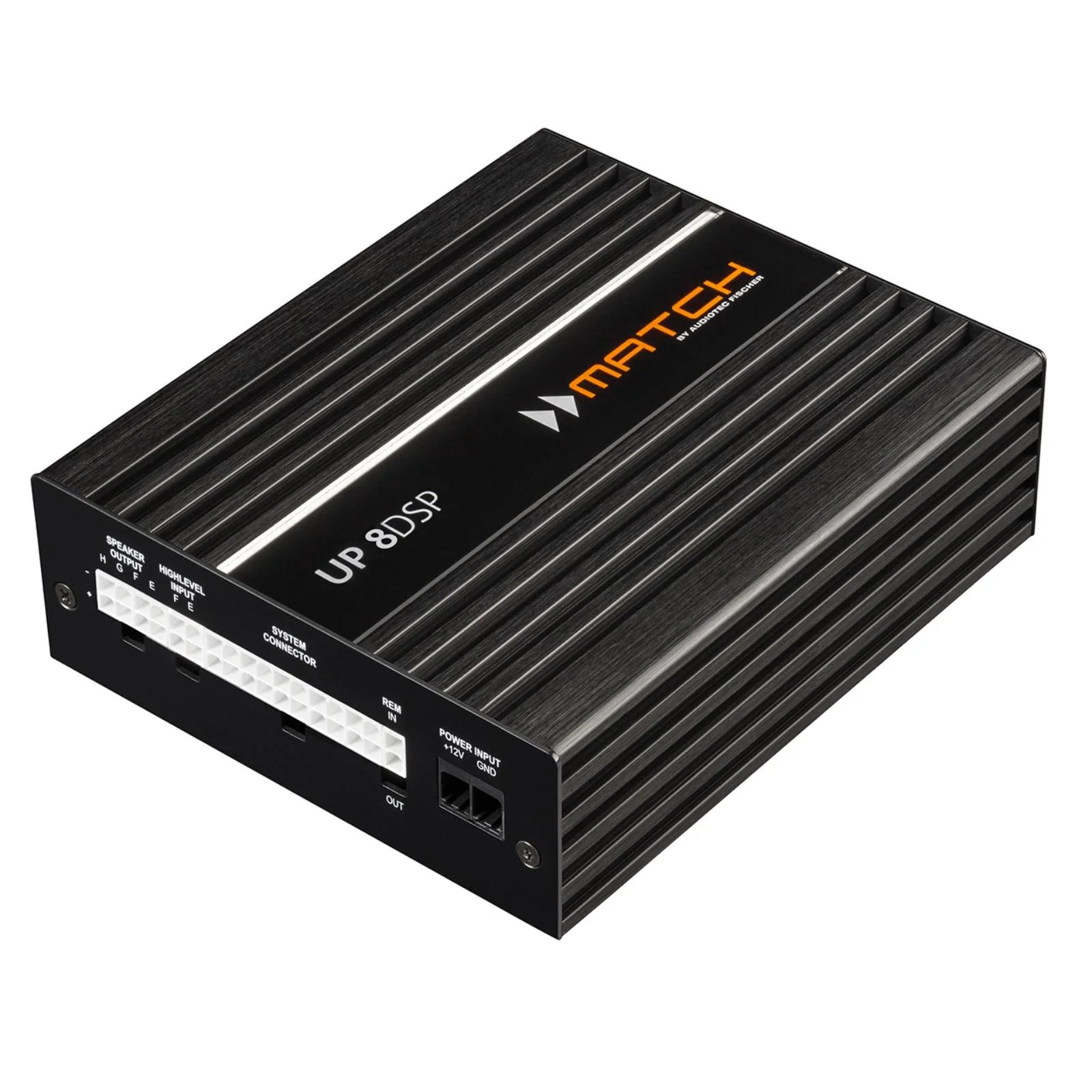

MATCH UP 8DSP
The UP 8DSP is the most potent MATCH DSP amplifier and comprises our new ADEP—3 circuitry.
The powerhouse for simple OEM integrations
The new UP 8DSP is a true all-rounder that delivers unbridled power and dynamics for true hi-fi sound and comes with all the prerequisites for easy integration into the vehicle.

Ultra-efficient 8-channel amplifier with 1-channel line output and 9-channel DSP
Perfect for upgrading multi-channel factory sound systems
Optional cable harnesses for easy integration into existing multi-channel factory sound systems
Extremely powerful 64 Bit “fixed point” Audio DSP
ACO – Advanced 32-Bit CoProcessor platform for extended feature set
ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
Proprietary TuneEQ function for automated adjustment of the output equalizers
SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
Smart 6-channel high-level input with ADEP.3 circuit
1 to 1 Input / Output Routing (IOR) in combination with the optional MEC ANA-LOG IN module – the same number of high-level inputs and amplifier outputs
VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
MATCH Extension Card slot (MEC) for system expansions like Bluetooth® HD Audio Streaming, High-Resolution Audio Streaming via USB, etc.
Optical input in SPDIF format with a sampling rate between 12 and 96 kHz
Mono RCA output for the connection of an external amplifier, e.g. subwoofer amplifier
SCP (Smart Control Port) for optional accessories like DIRECTOR, CONDUCTOR & Co.
Auto Remote switch
Start-stop capability down to 6 Volts supply voltage
Compact design with low heat dissipation thanks to extraordinary efficiency
Seamless connectivity
With its six high-level inputs, an optical digital input, the MATCH Extension Card slot, and many intelligent technologies, such as the proprietary ADEP.3 circuit, the UP 8DSP is perfectly equipped to seamlessly adapt to existing multi-channel sound systems.

Furthermore, with a total of eight amplifier channels and the additional line output—in combination with the powerful 9-channel DSP—individual speaker configurations can also be realized.

Two amplifier output channels deliver 160 Watts RMS into 2 Ohms – plenty enough for fuelling even large subwoofers.

Virtual Channel Processing – this is how signal routing works today
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 8DSP is also equipped with Audiotec Fischer’s innovative virtual channel processing.

Conventional routing concepts quickly reach their limits regarding implementation and usability, mainly when front, rear and centre systems are split into multi-way systems. The multi-stage “Virtual Channel Processing”, in conjunction with the recognized user-friendly DSP PC-Tool software, makes it easy to map even highly complex system configurations and freely assign our proprietary FX sound features. Additionally, thanks to its generous number of channels combined with the optional MEC ANALOG IN module, the UP 8DSP is a prime example for applications where 1 to 1 routing (IOR) makes sense.

ACO – Advanced 32-Bit CoProcessor Platform
Of course, the UP 8DSP is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.

Compact dimensions
Despite its wide feature set and beefy output power of 6 x 65 Watts at 4 Ohms plus 2 x 90 / 160 Watts at 4 / 2 Ohms, the UP 8DSP is—as usual for a MATCH amplifier—in a very compact design, so it can be installed even in confined spaces without any problems.

DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 8DSP can be easily configured via our new, professional, and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. Thanks to the new, proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.

SPECIFICATION:

• Output power RMS / max.
• – @ 4 Ohms    Channels A – F: 6 x 65 Watts
• – @ 2 Ohms    –
• – @ 1 Ohm    –
• – bridged @ 4 Ohms    –
• – bridged @ 2 Ohms    –
• – Subwoofer output @ 4 Ohms    Kanal G – H: 2 x 90 Watts
• – Subwoofer output @ 2 Ohms    Kanal G – H: 2 x 160 Watts
• Amplifier technology    Class GD
• Inputs    6 x high-level speaker input
• 1 x Optical SPDIF (12 – 96 kHz)
• 1 x MEC
• 1 x Remote In
• Input sensitivity    2.8 – 11 Volts
• Input impedance RCA / Cinch    –
• Input impedance is at a high level of 9 – 33 Ohms with ADEP.3
• Outputs    8 x Speaker output
• 1 x RCA / Cinch
• 1 x Remote Out
• Output voltage RCA / Cinch    3 Volts RMS
• Frequency response    10 Hz – 22,000 Hz
• DSP resolution 64-bit
• DSP power    295 MHz (1.2 billion MAC operations/second)
• Sampling rate    48 kHz
• DSP-type Audio signal processor
• Signal converters    A/D: BurrBrown
• D/A: BurrBrown
• Signal-to-noise ratio digital input    106 dB (A-weighted)
• Signal-to-noise ratio analog input    104 dB (A-weighted)
• Distortion (THD)    < 0.03 %
• Damping factor    > 100
• Operating voltage    10.5 – 17 Volts (max. 5 sec. down to 6 Volts)
• Power rating    DC 12 V ⎓ 40 A max.
• Idle current    380 mA
• Max. remote output current    500 mA
• Fuse    2 x 25 A LP-Mini-fuse (APS)
• Additional features    Class GD technology with dynamically controlled
• power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
• Dimensions (H x W x D)    46 x 130 x 153 mm /
• 1.81 x 5.12 x 6.02″

WHAT’S INCLUDED:

MATCH UPGRADE amplifier UP 8DSP
Connection cable x4
Control Input-to-SCP adaptor
Power Input connector
Mounting plates & material
USB cable
Instruction manual
